This is my take on the Cyberdeck Keyboard project, which inspired me not just to build handwired keyboards, but to design them myself from scratch.

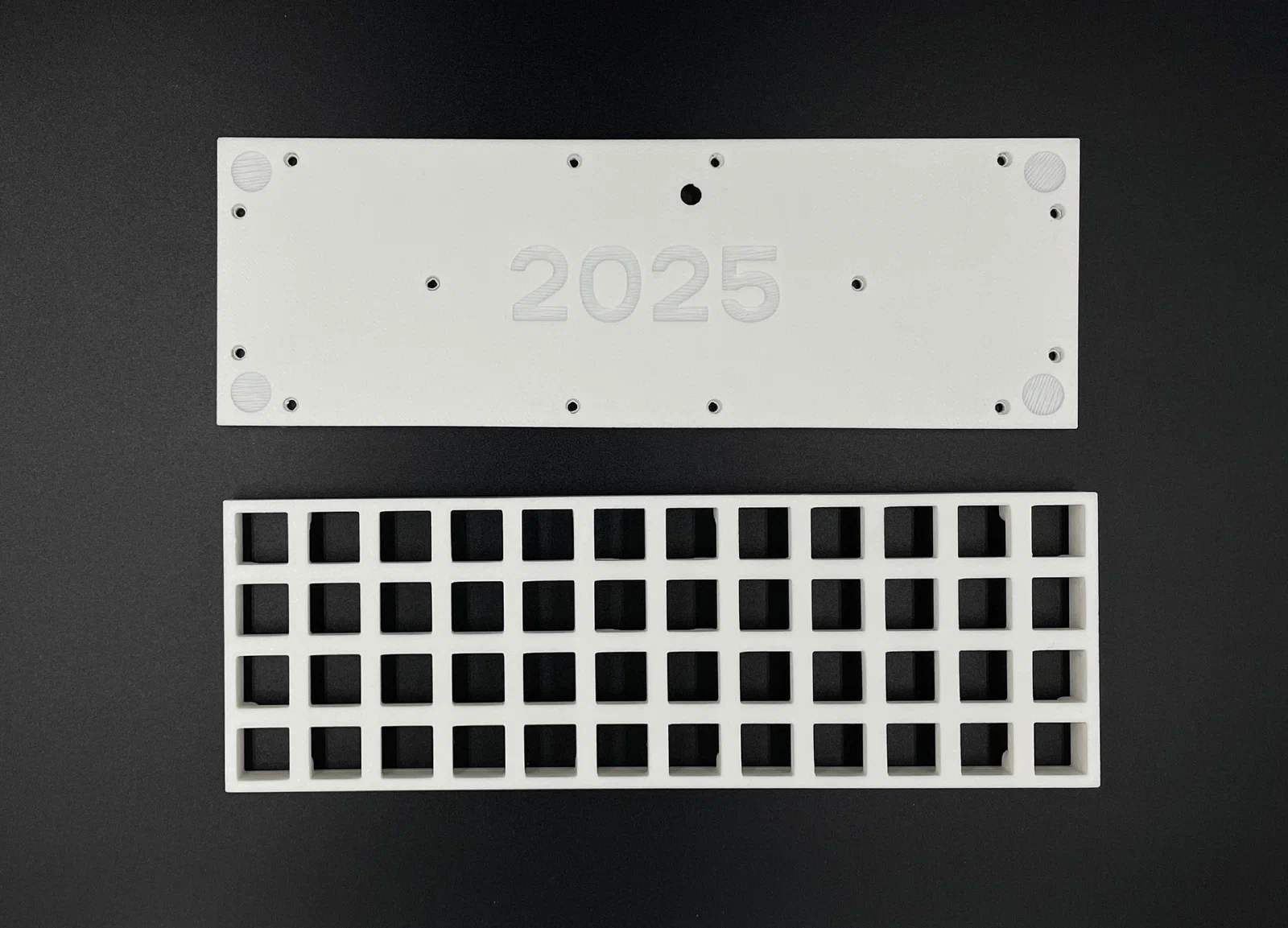

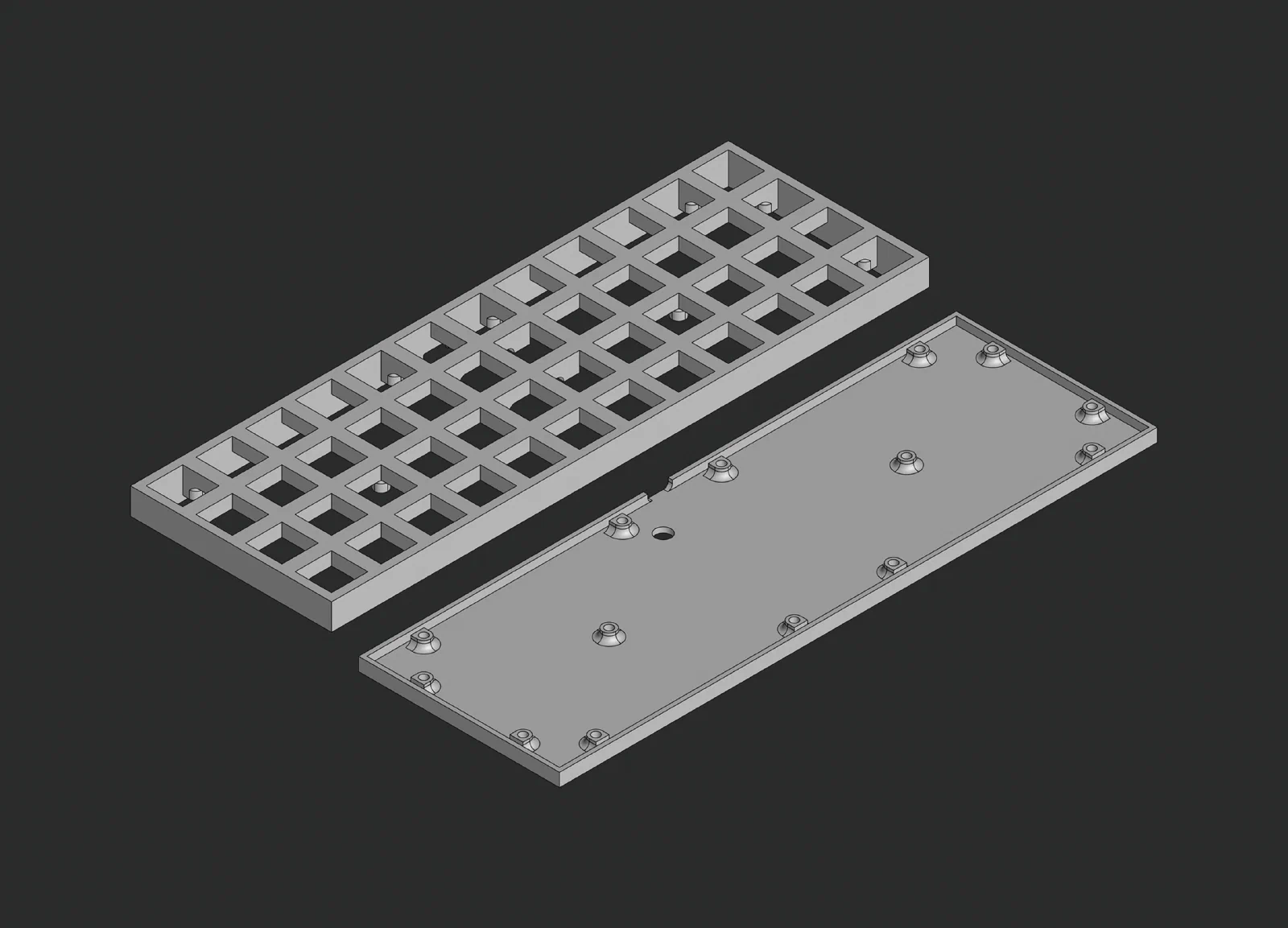

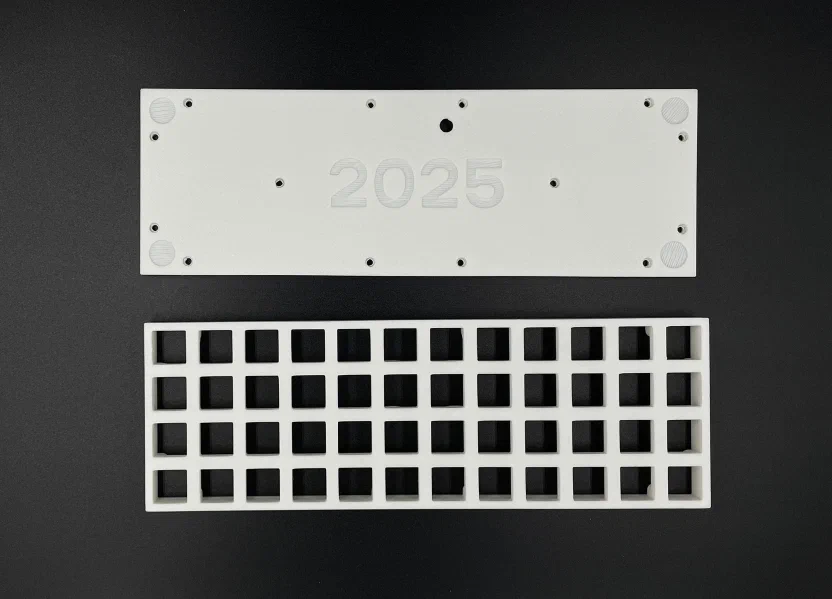

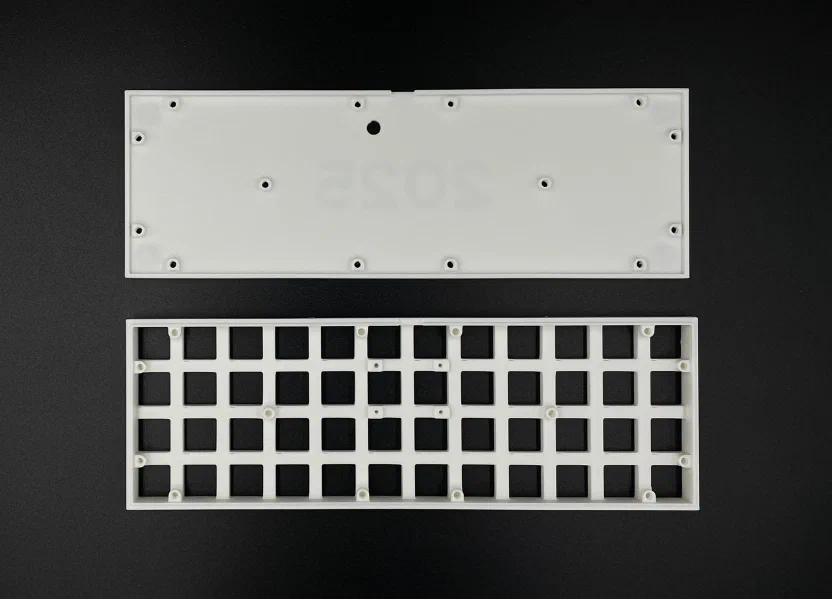

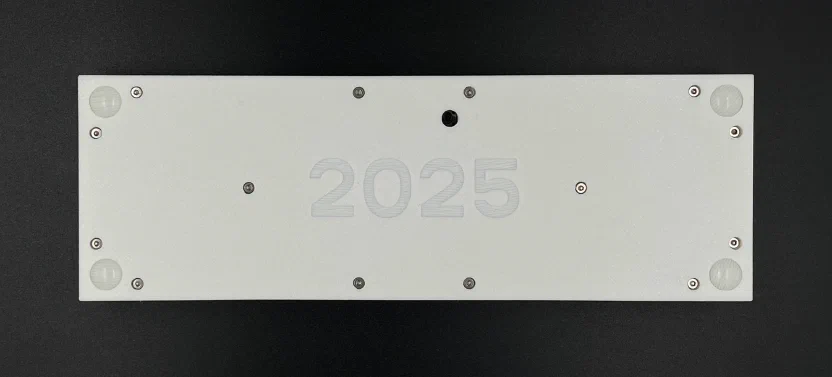

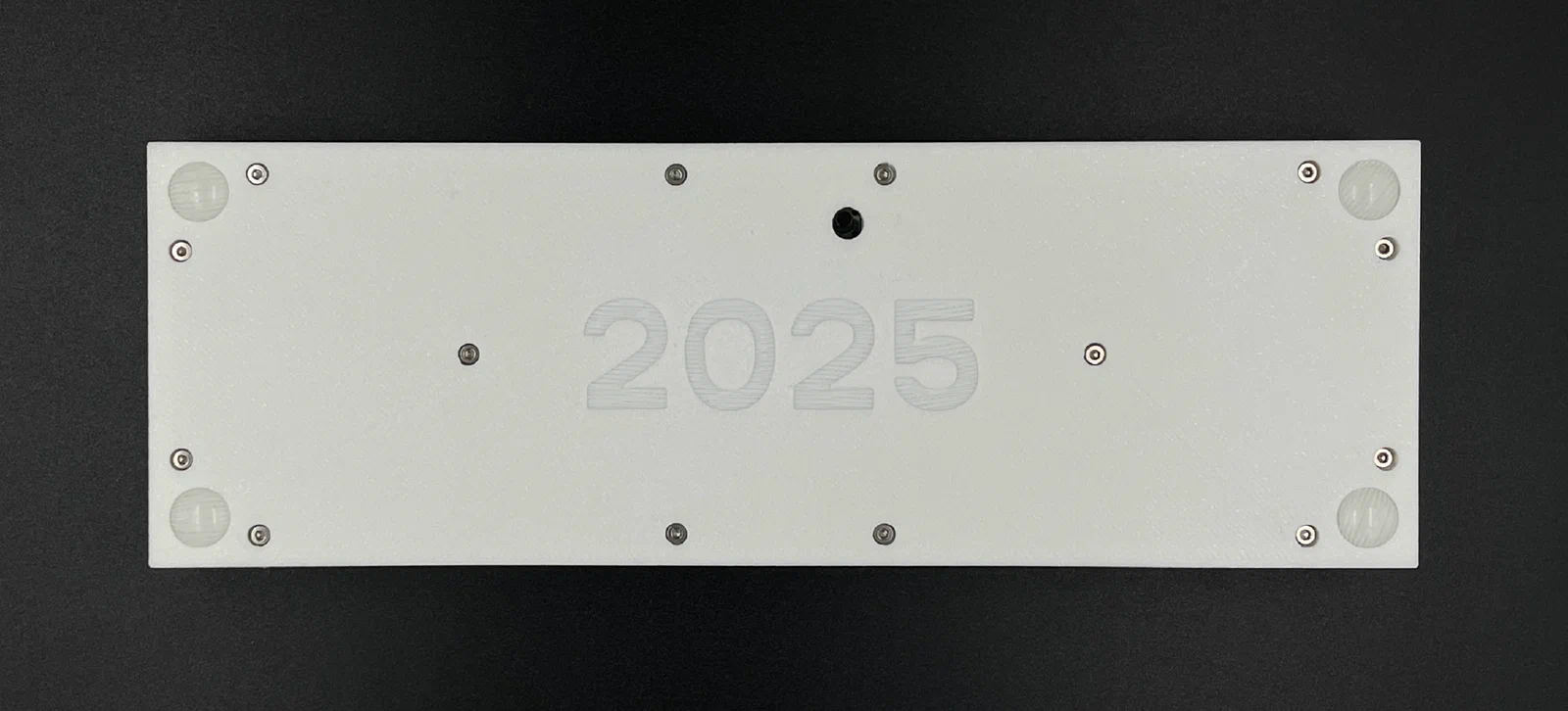

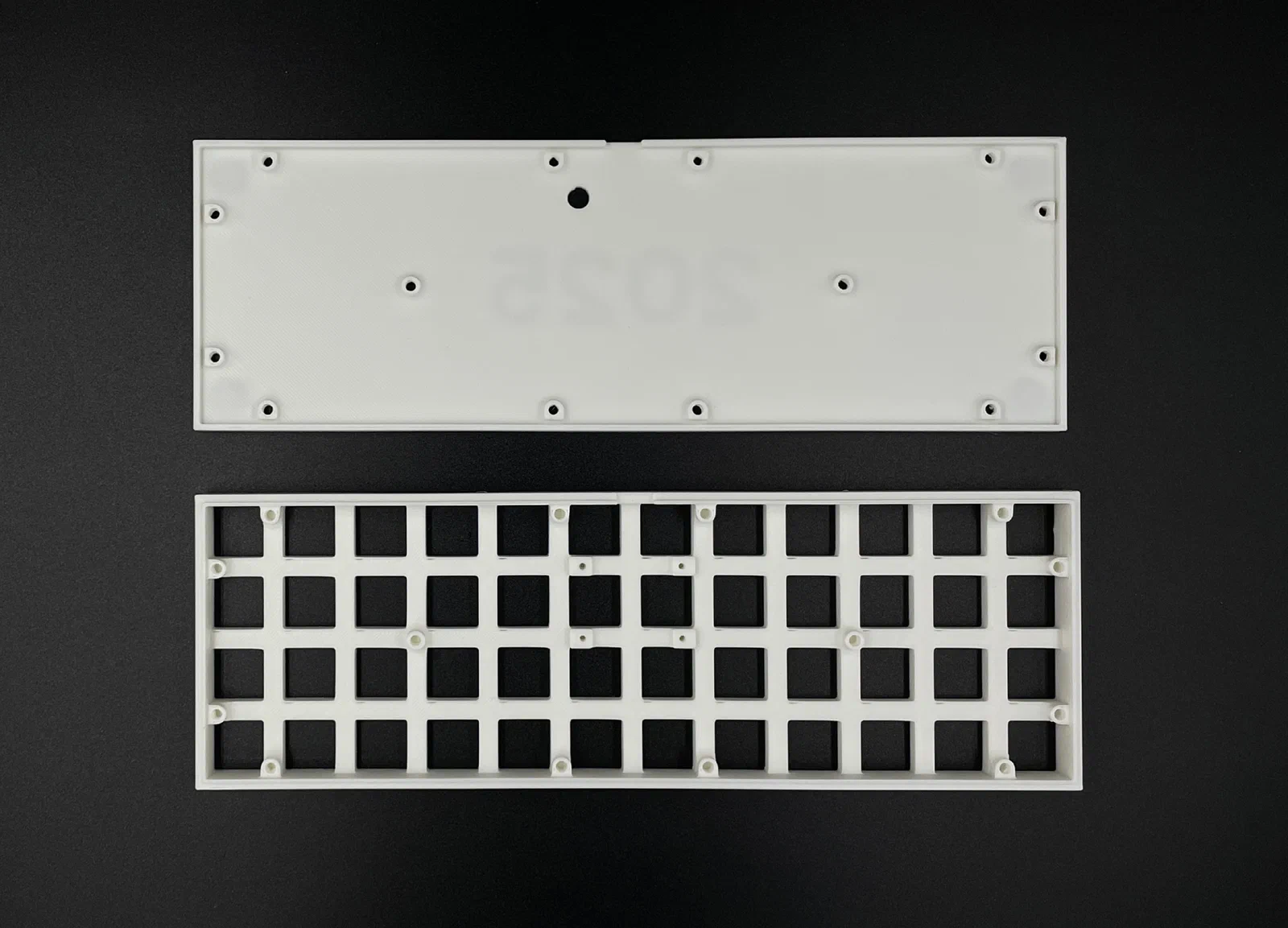

Case
Bill of materials
| Part | Count |
|---|---|
| Pro Micro ATmega32U4 (USB-C) | 1 |
| 3D printed case | 1 |
| M2 heat set inserts (OD 3.2mm) | 14 |
| M2 screws | 18 |

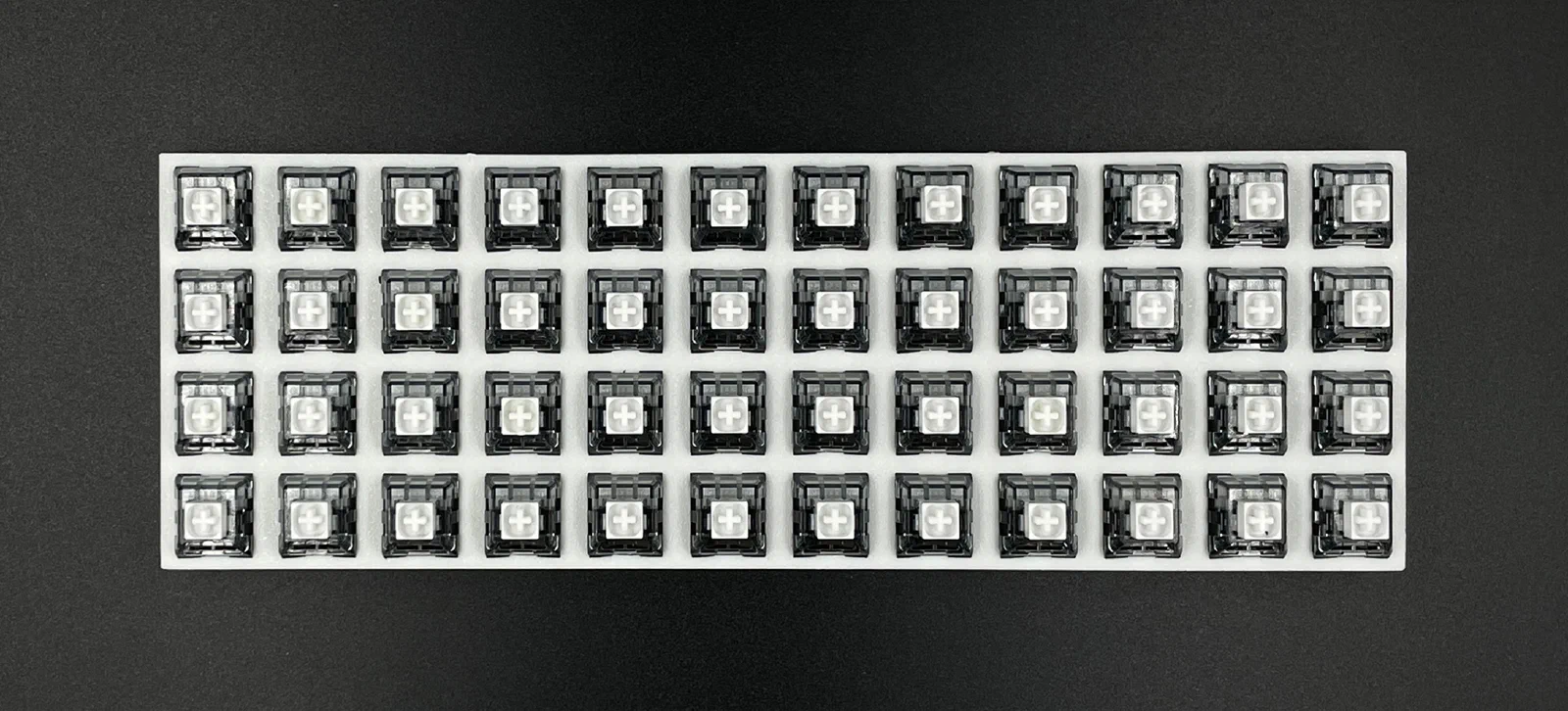

| MX switches (Kailh White V2) | 48 |
| 1N4148 diodes | 48 |

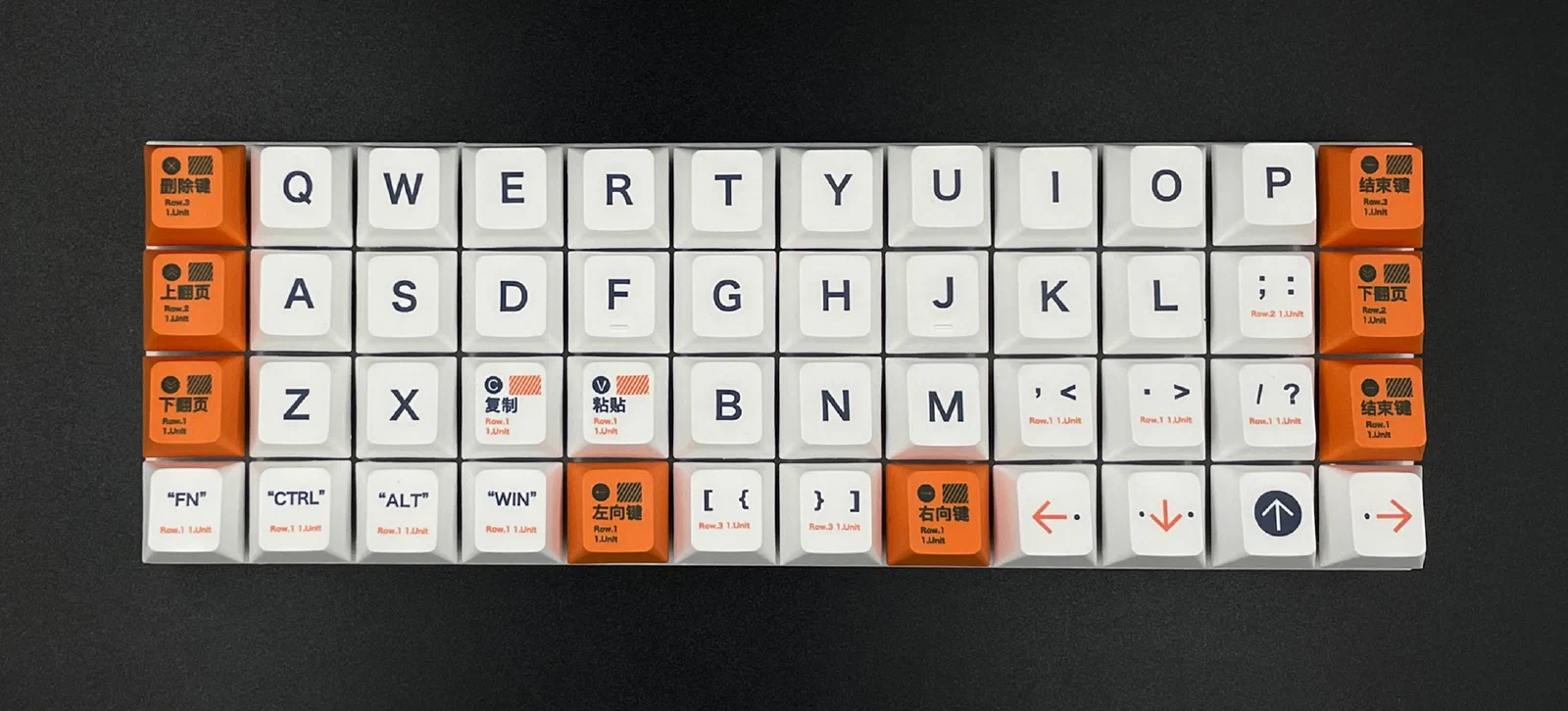

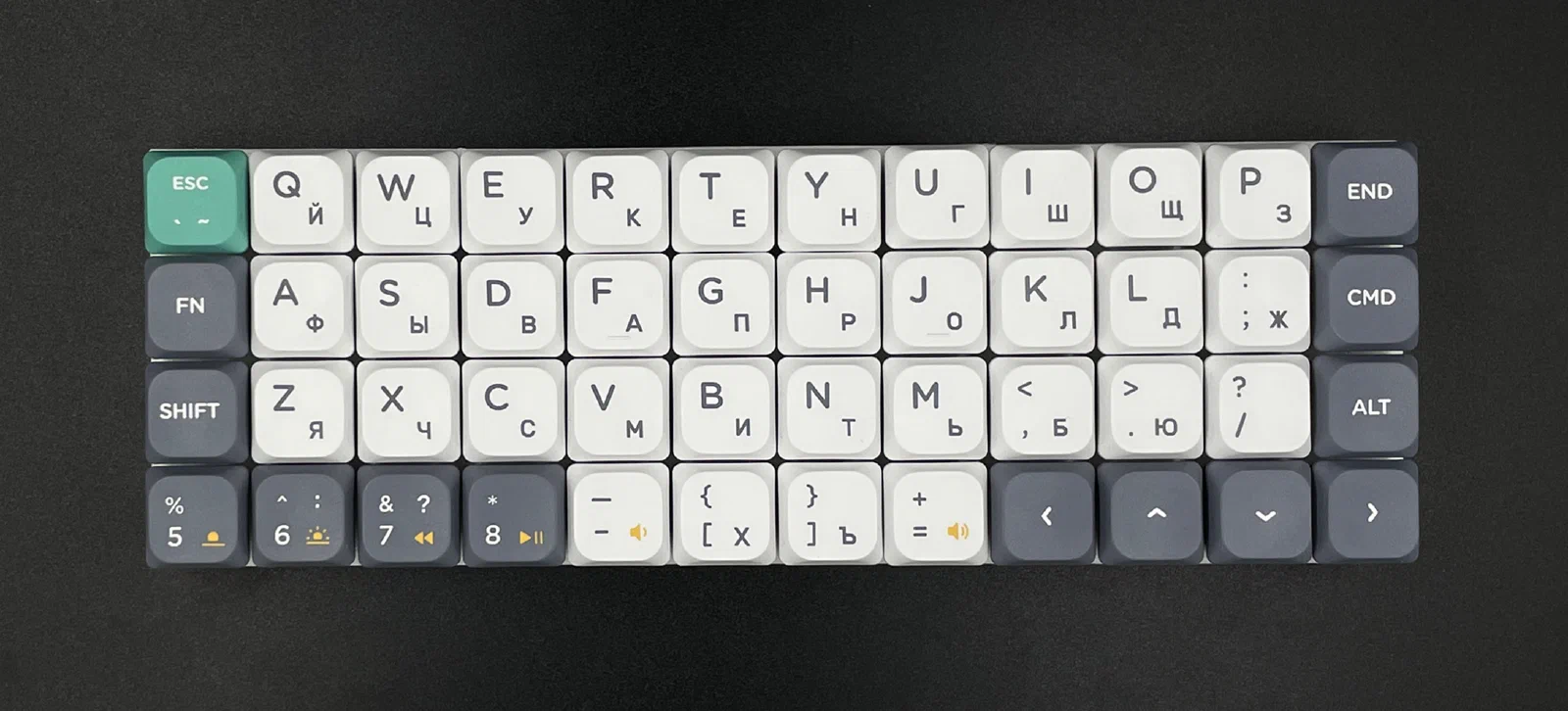

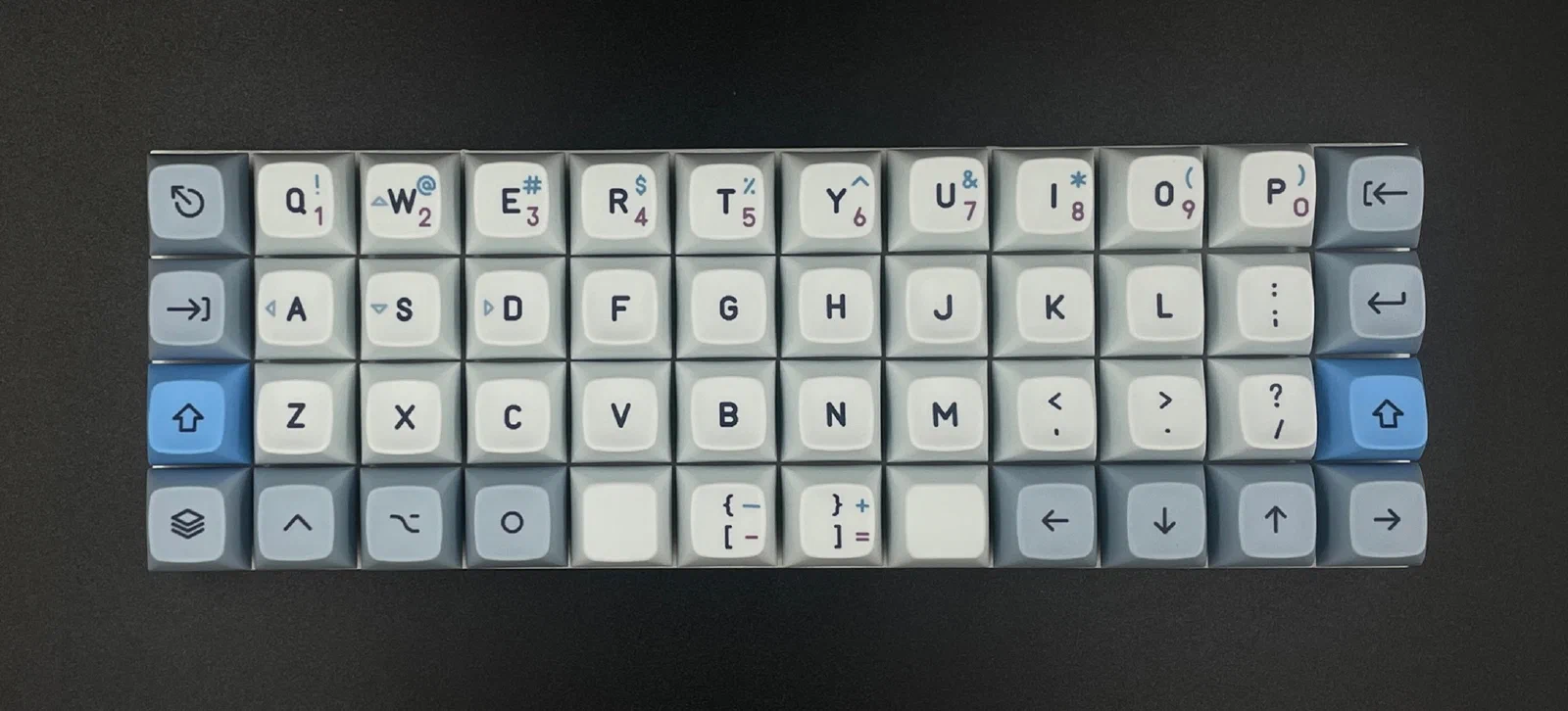

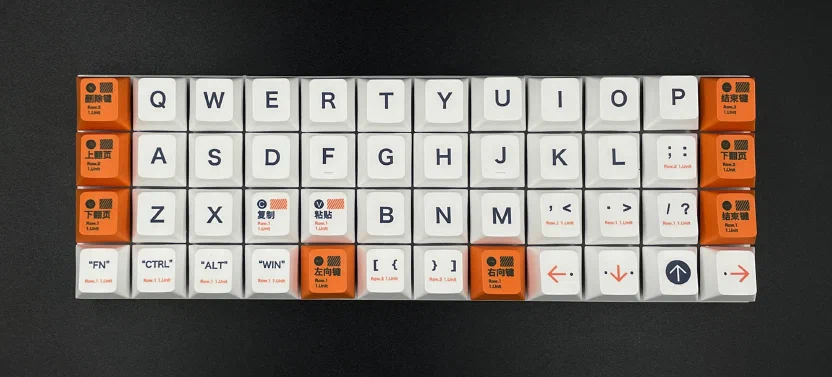

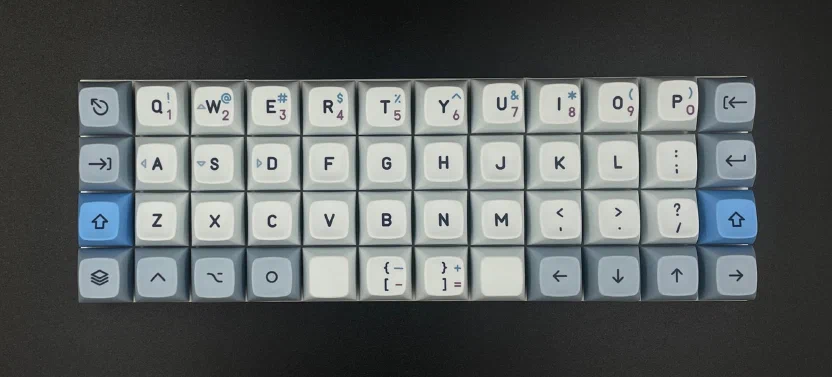

| Keycaps | 48 |
| Adhesive Bumper Pads (11mm) | 4 |
| Wires |

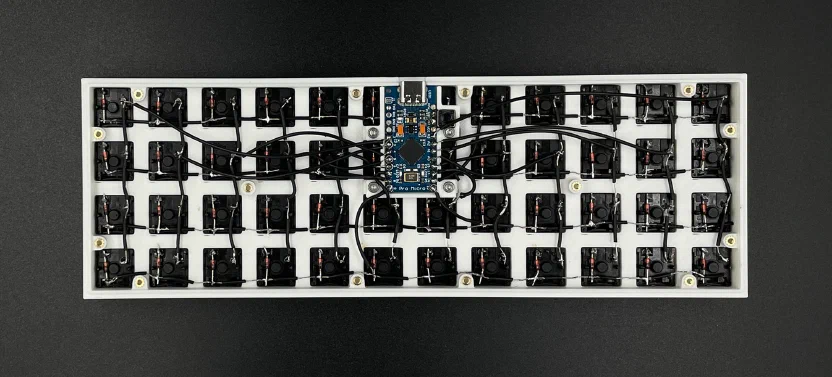

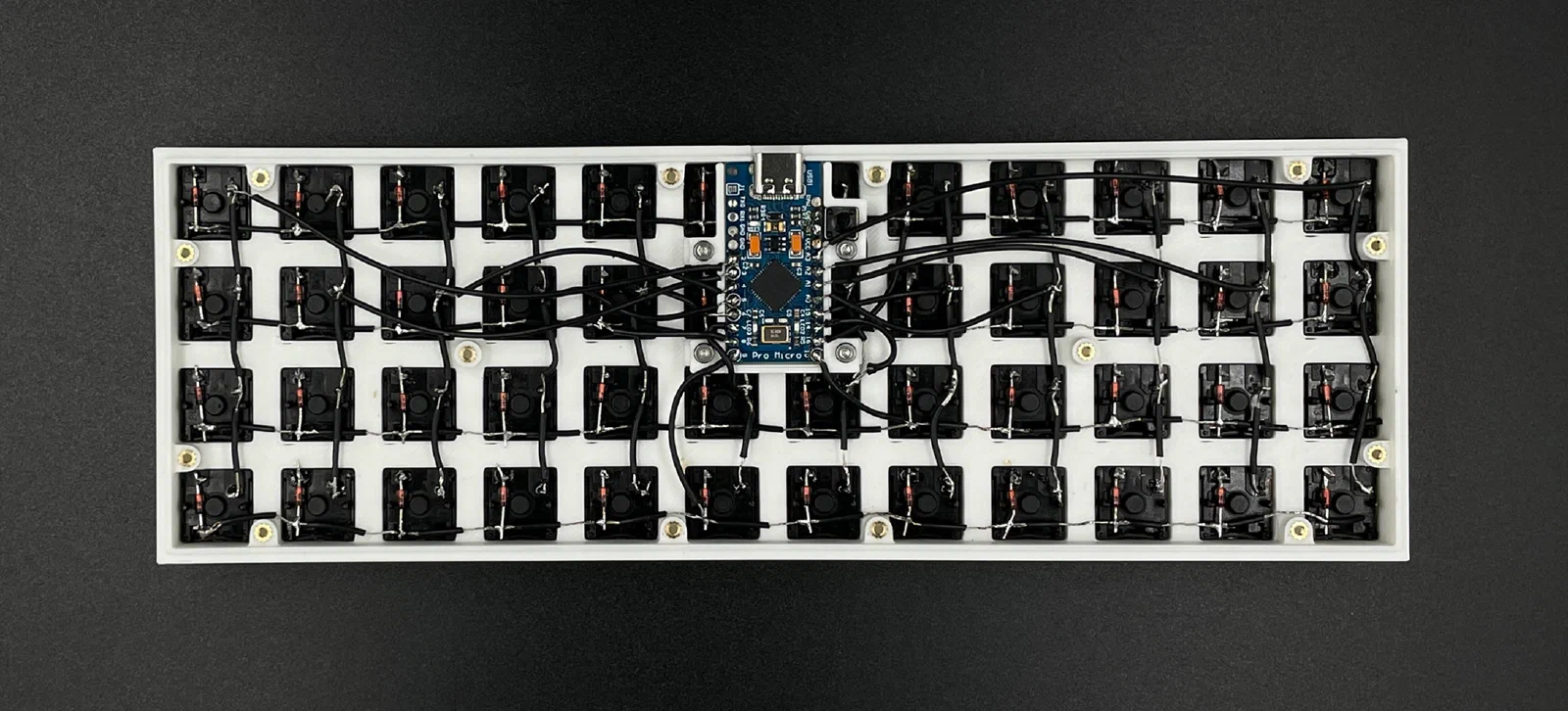

Build Log
Photos
Resources
You can find the build guide, case print files, and firmware on the project page.
