I couldn’t not build a Corne for my keyboard collection. So far, it’s the thinnest keyboard I own.
Bill of materials
| Part | Count |
|---|---|

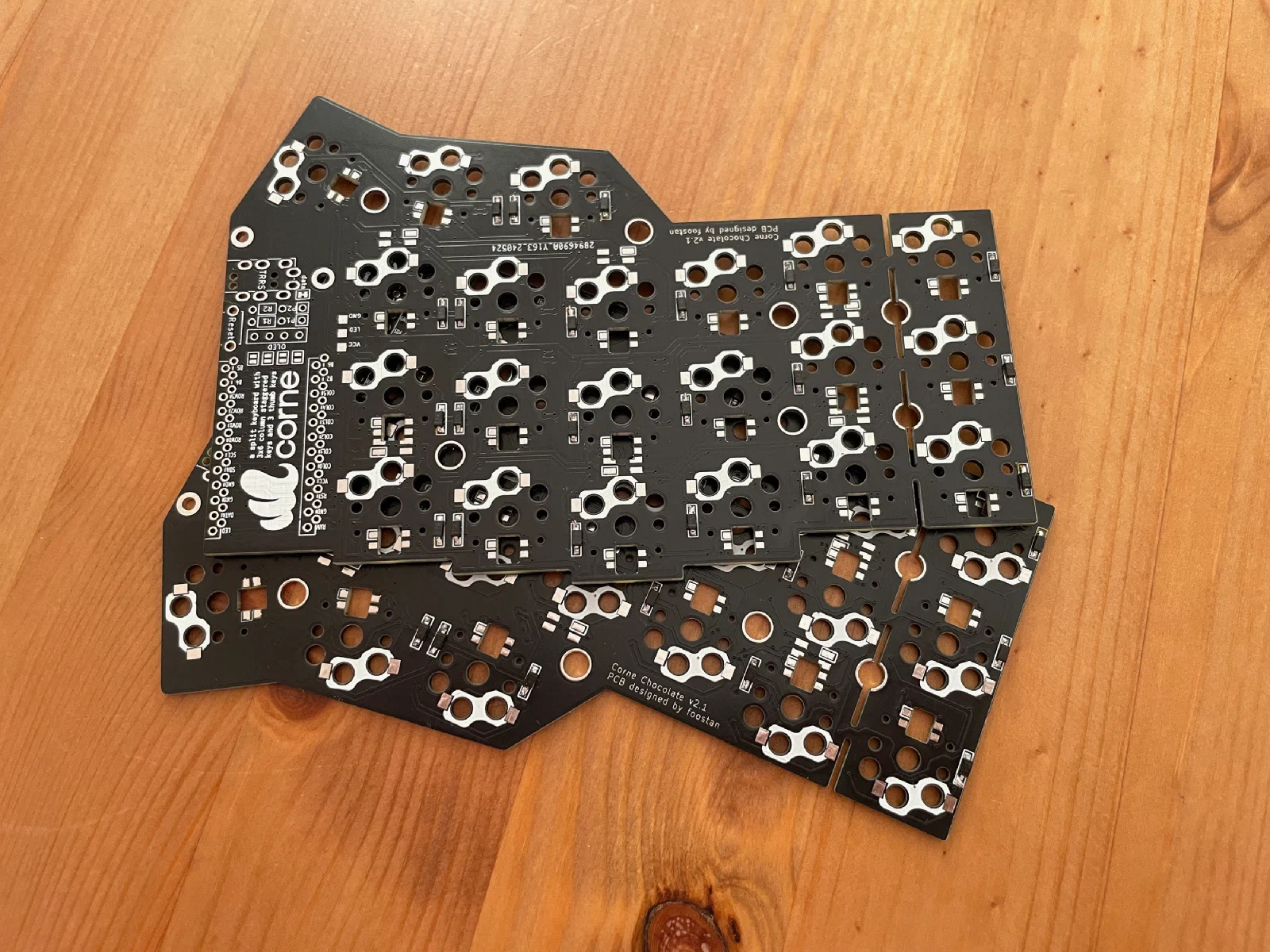

| Corne PCB | 2 |

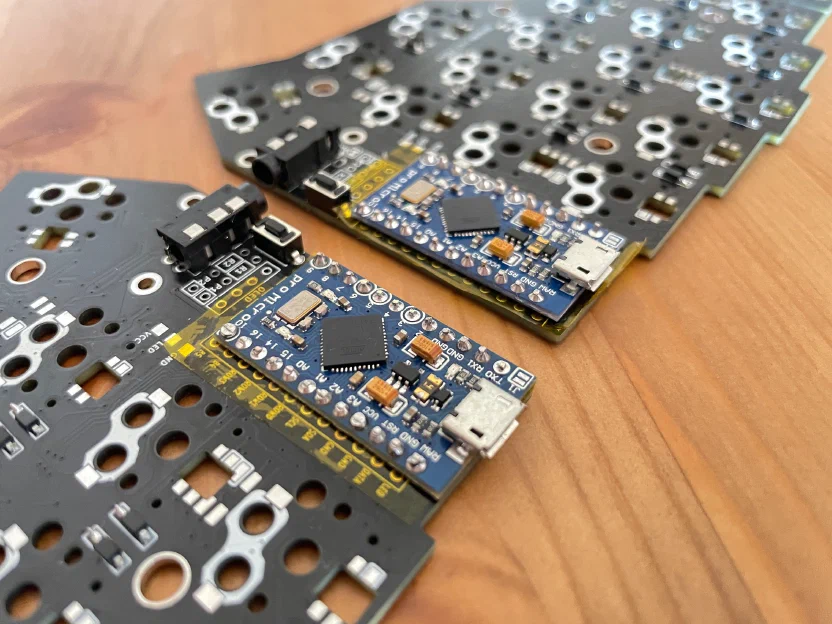

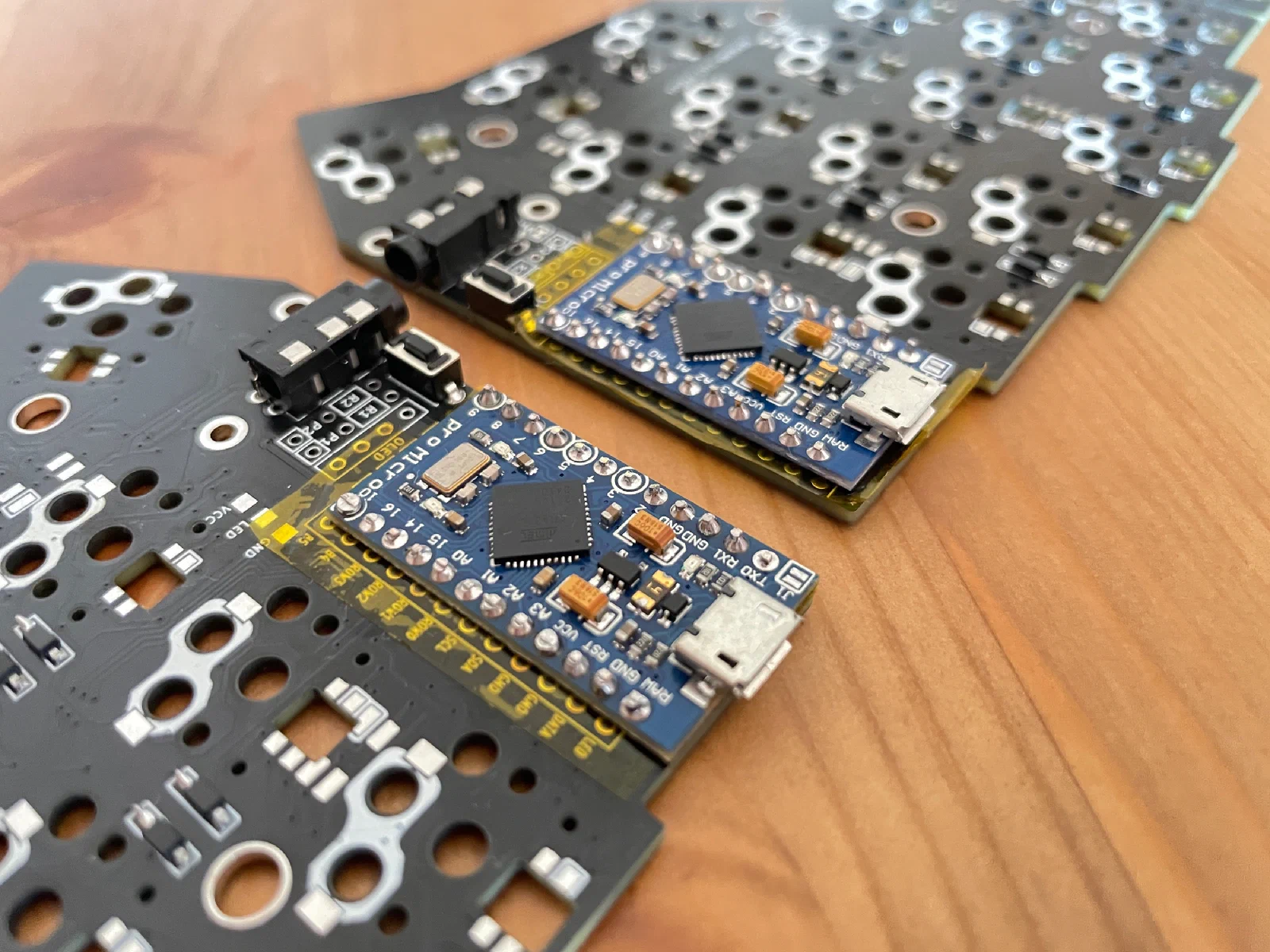

| Pro Micro ATmega32U4 | 2 |
| Switches (Kailh Choc Red Pro) | 42 |
| SMD Diodes | 42 |
| Choc Keycaps | 42 |
| Kailh Choc v1 hotswap sockets | 42 |
| TRRS Jack | 2 |
| TRS (3 or 4 pole) cable | 1 |
| Tact switch | 2 |
| M2 screws (4mm) | 10 |
| Adhesive Bumper Pads | 10−12 |

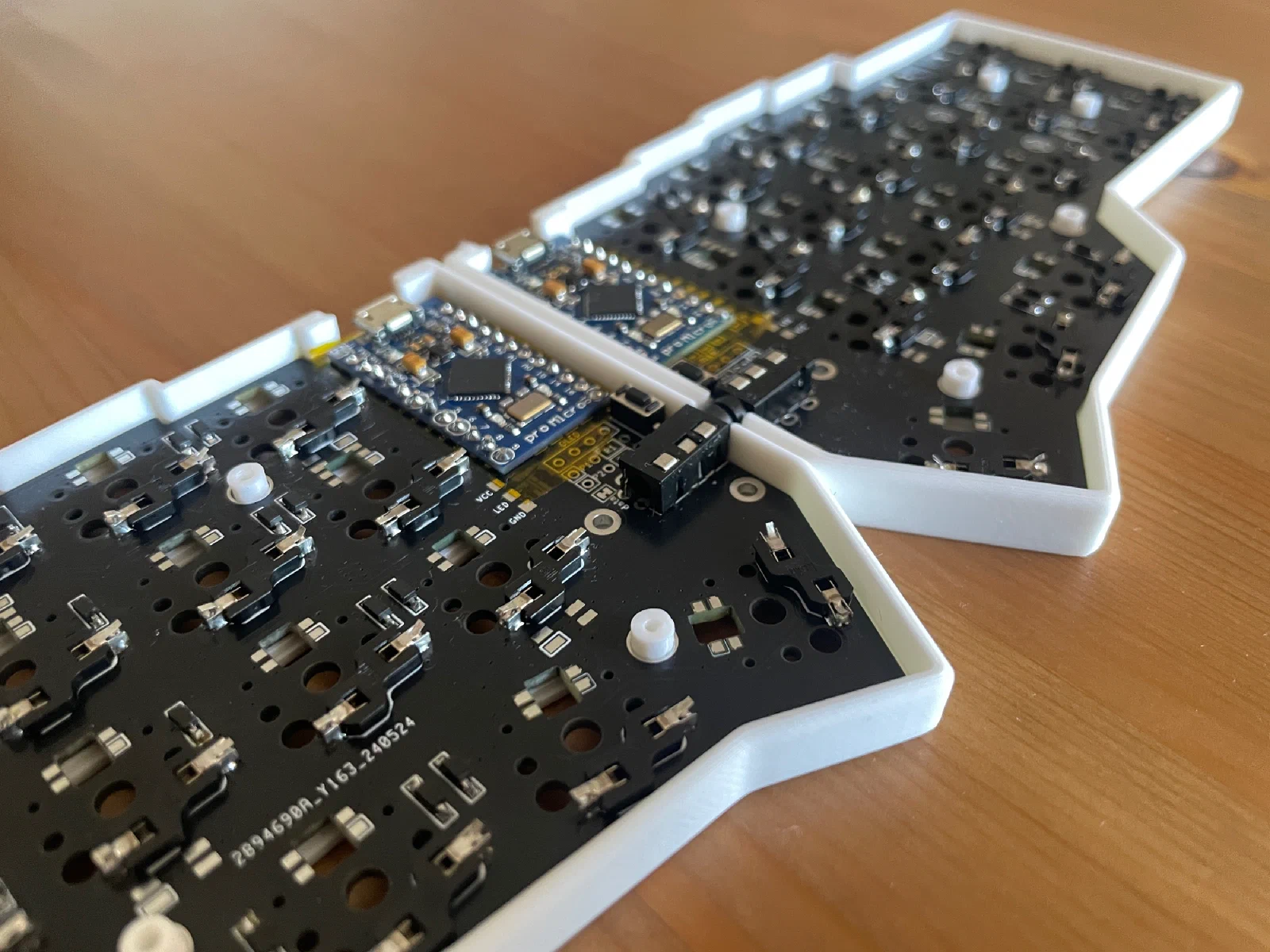

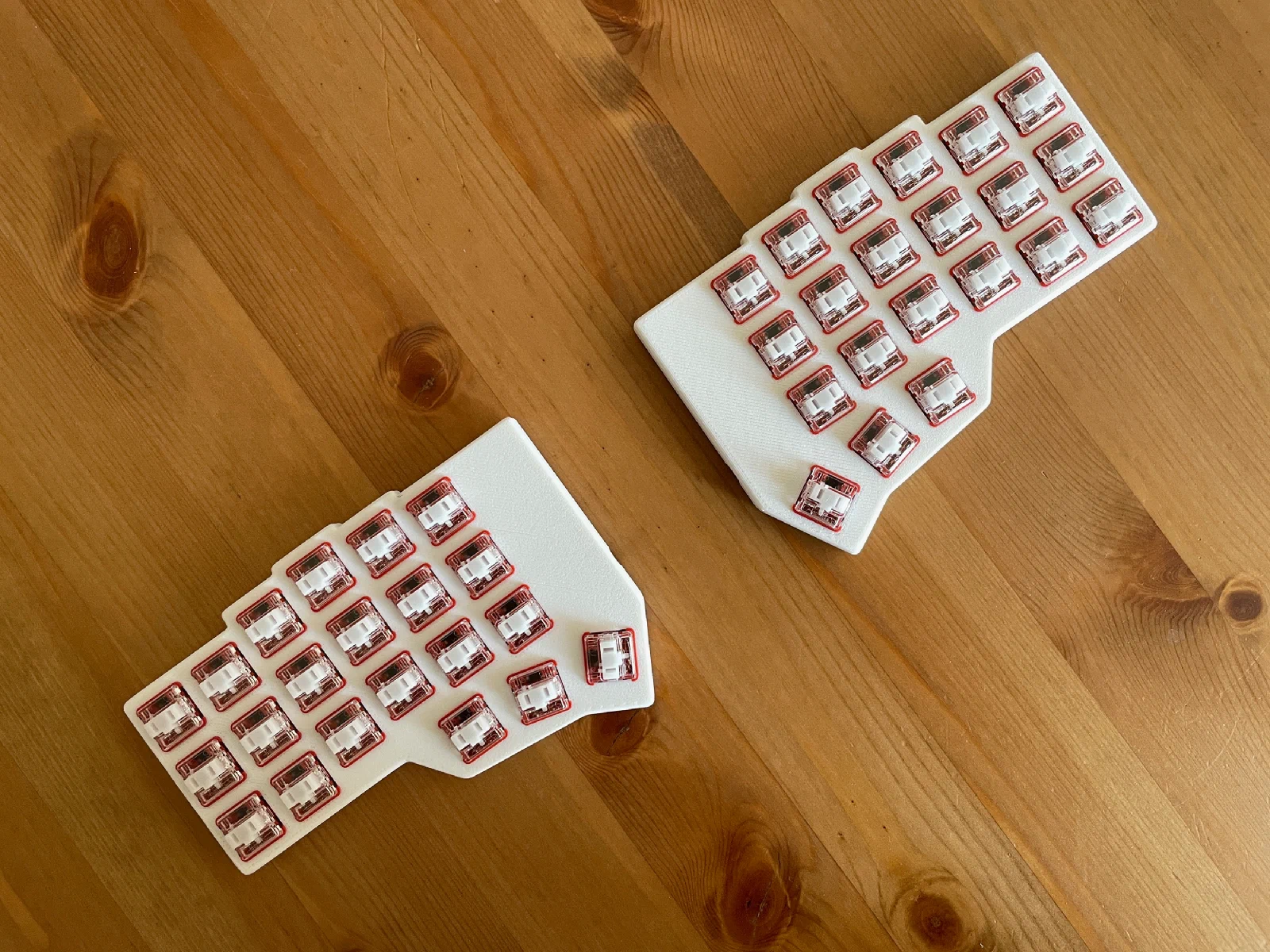

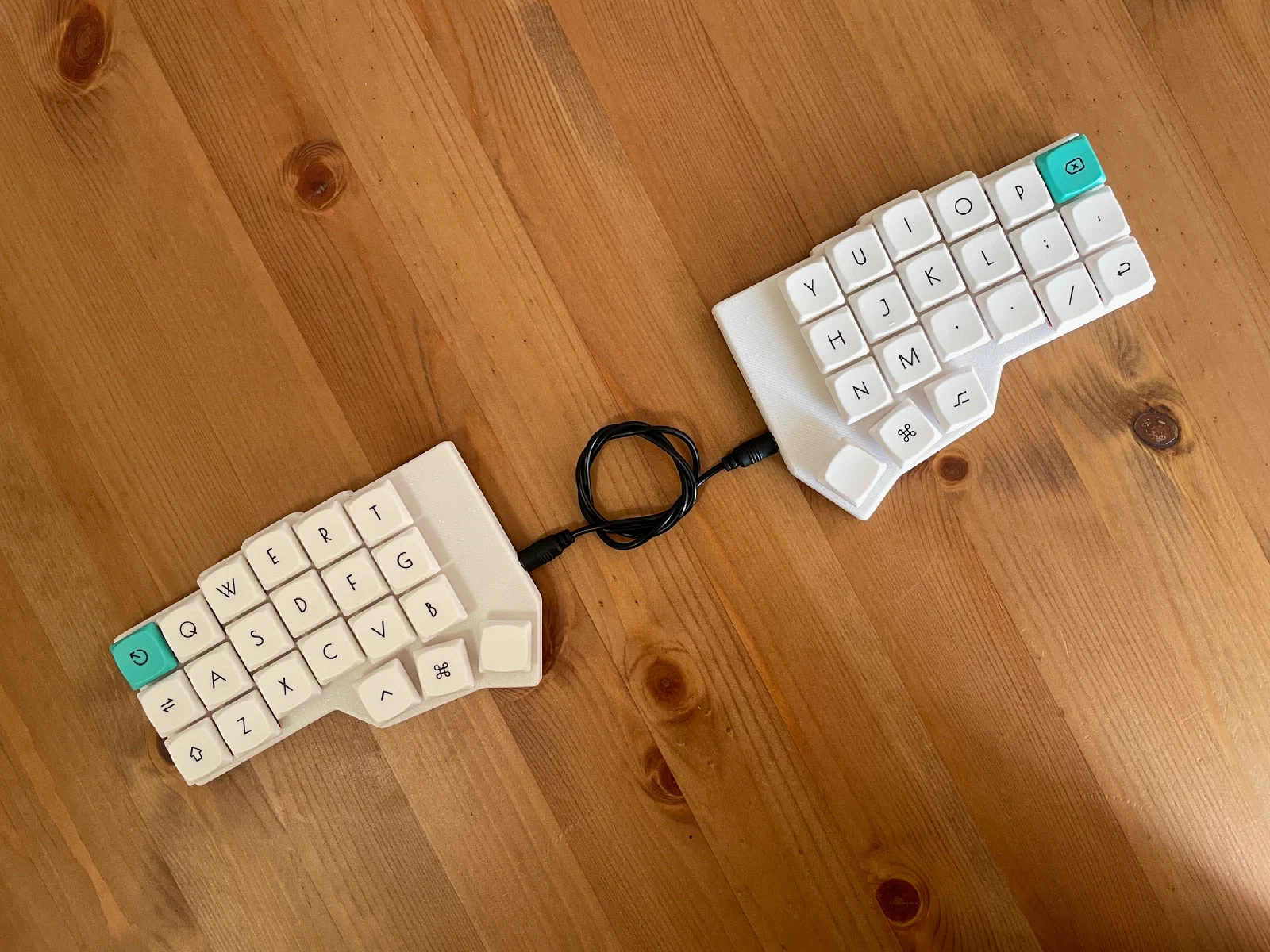

Build Log
Resources

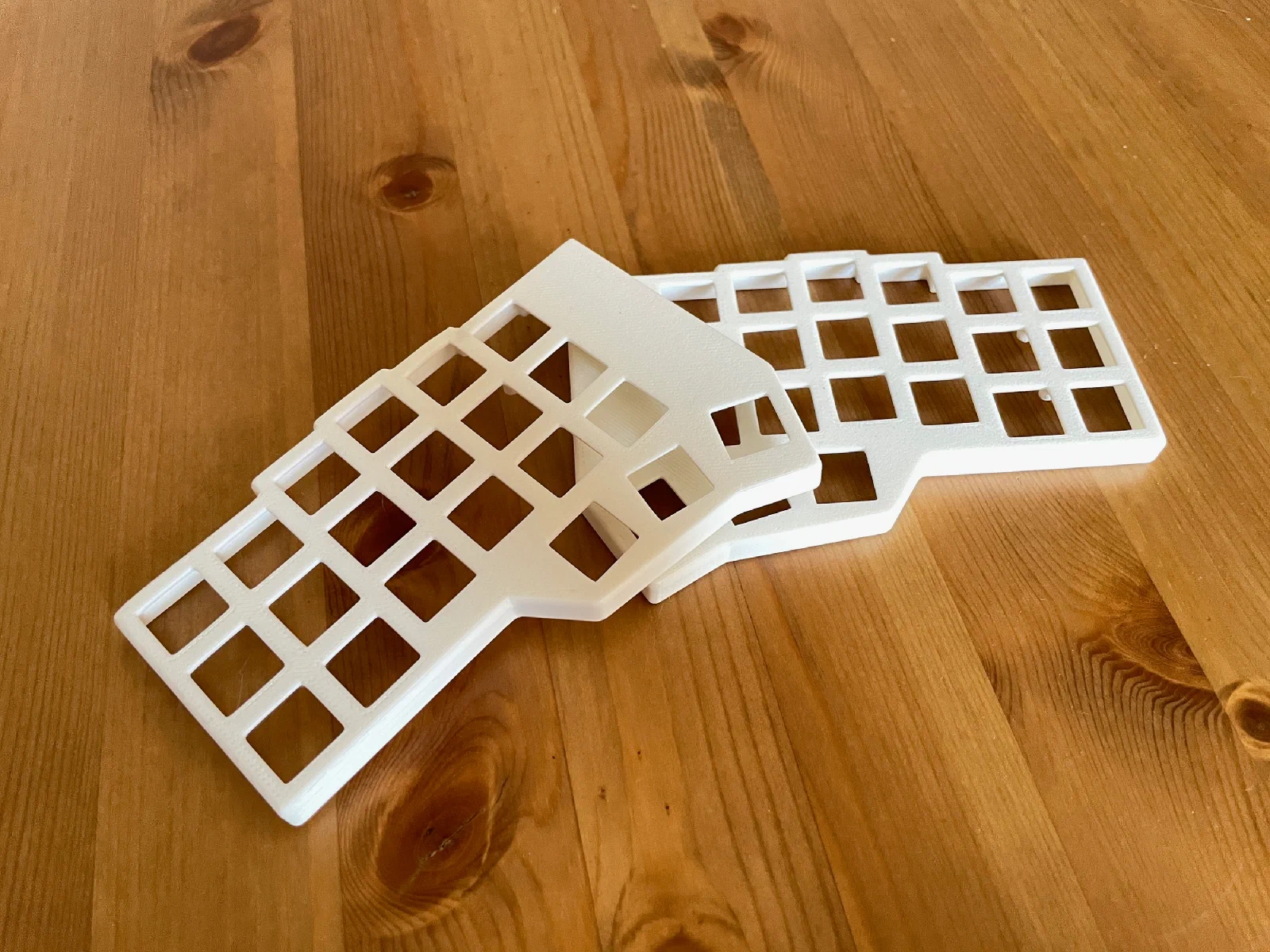

- Case print files on Printables
- Repo: GitHub
